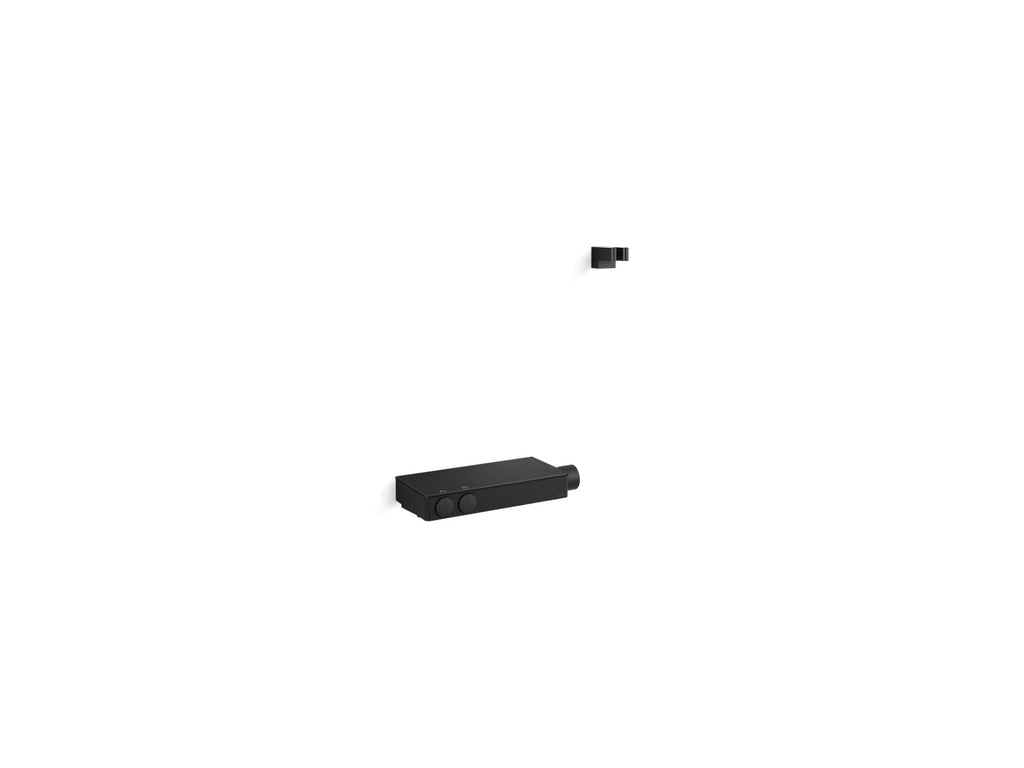

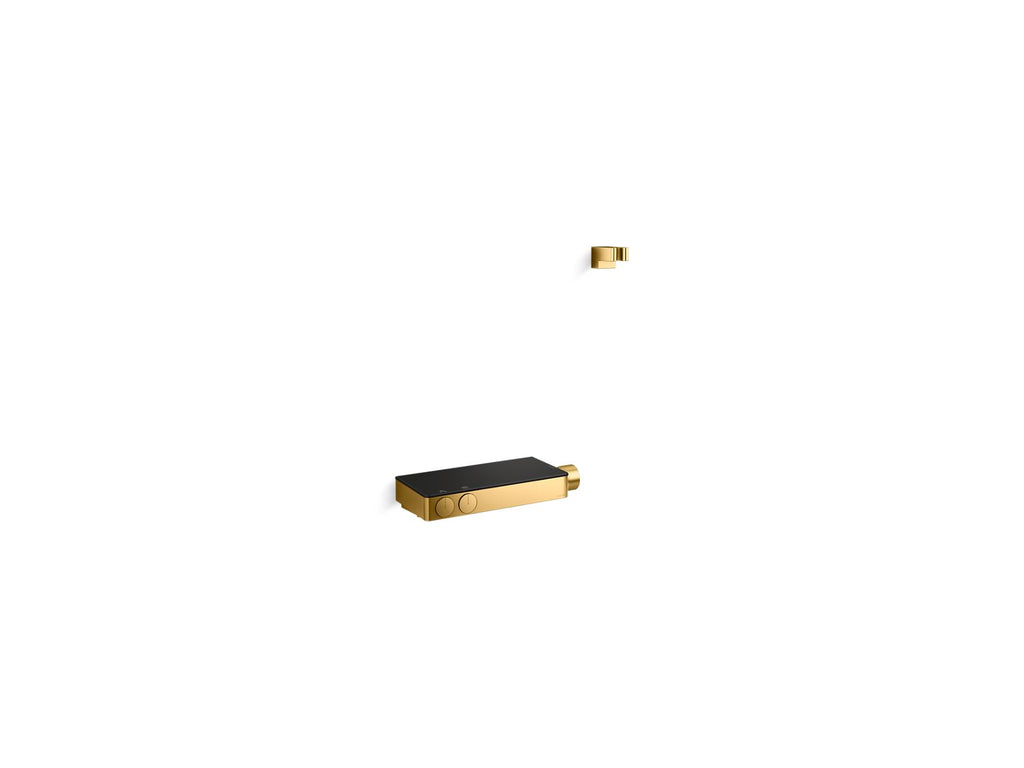

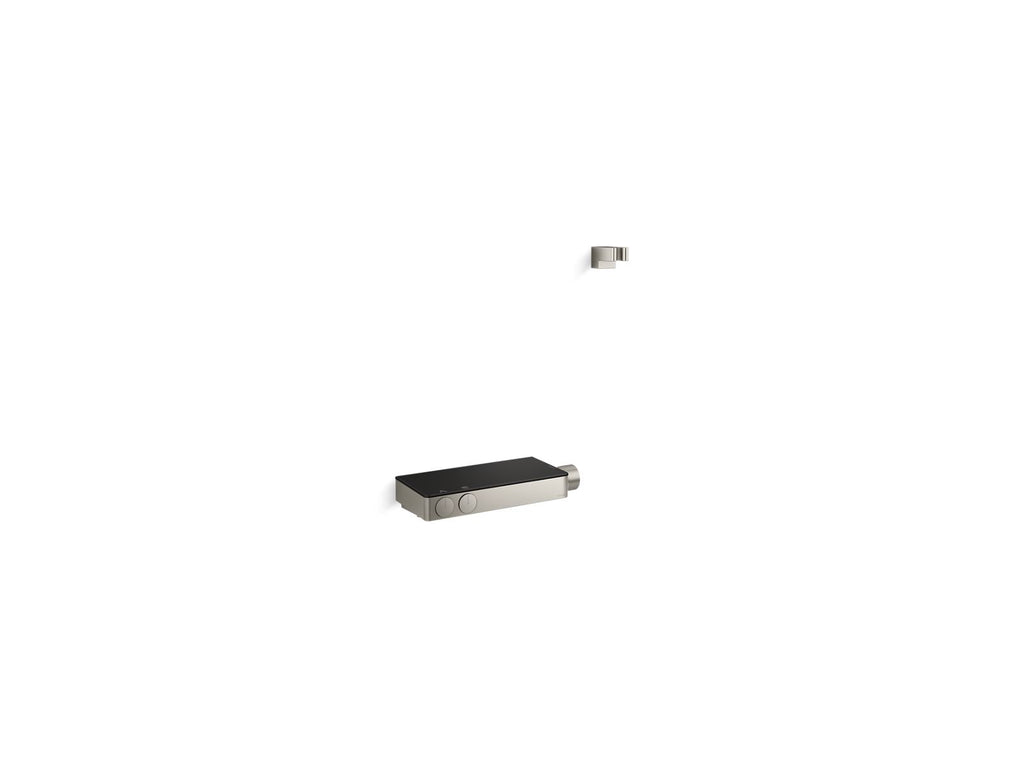

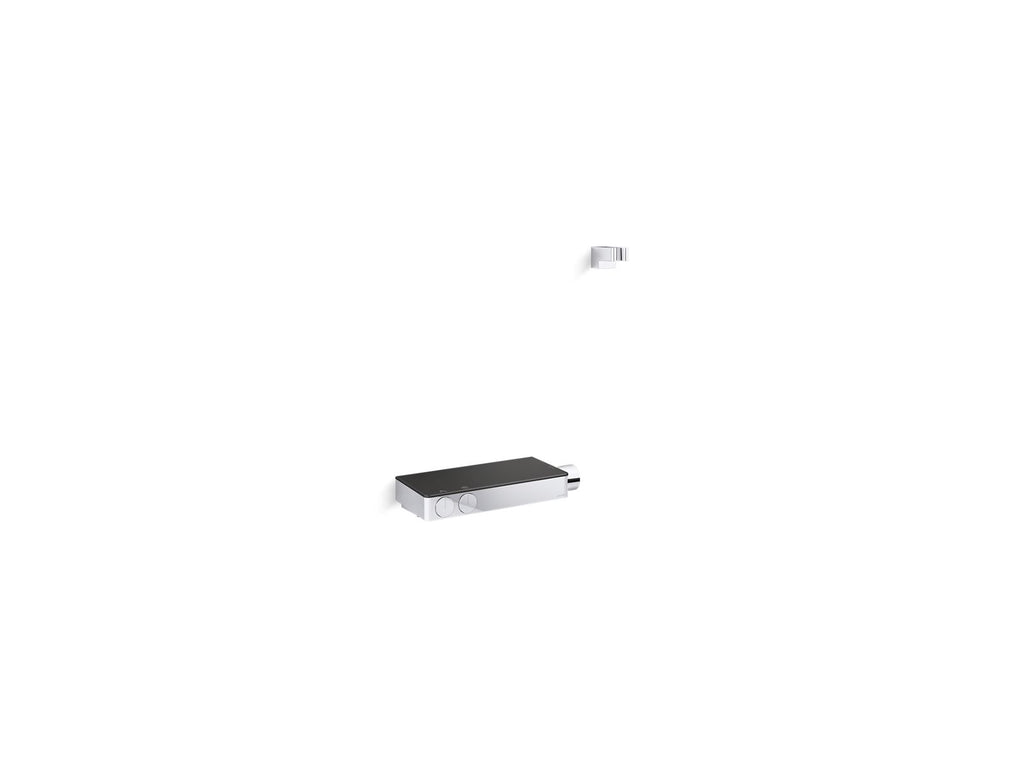

Anthem® Two-Way Exposed Thermostatic Valve And Control Panel With Integrated Handshower Holder

Create an elegant, spa-like multi-outlet showering experience with the exposed thermostatic valve and control panel. Influenced by iconic design, the two-way system features an exposed thermostatic valve/control panel and handshower holder. The integrated thermostatic valve/control panel provides a built-in shelf storage and features intuitive push-button and dial controls. This valve kit was designed for use with a single-function rainhead, handshower, and hose (sold separately).

Features

- Modern, simplistic exposed thermostatic valve serves as a hub for shower controls
- Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
- Control panel includes adjustable temperature dial with integrated adjustable high-temperature limit feature, shower outlet on/off buttons, and one filter for each outlet with space for up to four filters
- When pressed once, shower outlet turns on and button pops out, becoming a knob for water flow adjustment
- When pressed back in, water turns off and outlet button aligns with control plate surface; flow setting remains intact
- 1/2" Universal NPT and direct sweat inlets and outlets
- Requires a single-function rainhead, handshower, and hose (sold separately)

Material

- Premium material construction for durability and reliability
- KOHLER finishes resist corrosion and tarnishing

Technology

- Thermostatic technology automatically maintains outlet temperature within +/- 3.6°F (+/- 2°C) during water pressure fluctuations

Installation

- Valve is fully serviceable from control panel

Specification & Views

3DDWG | 3DDWGSymbol | 3DDXF | 3DDXFSymbol | 3D3DS | 3DOBJ | 3DSketchup | 3DRevit | BIMRevit | DWGFrontView | DWGPlanView | DWGSideView | DXFFrontView | DXFPlanView | DXFSideView | SpecPDFFileName | IMGISO | InstallationWithoutSPPDF | BIMRevit | 3DRevit | InteractiveSVG |
